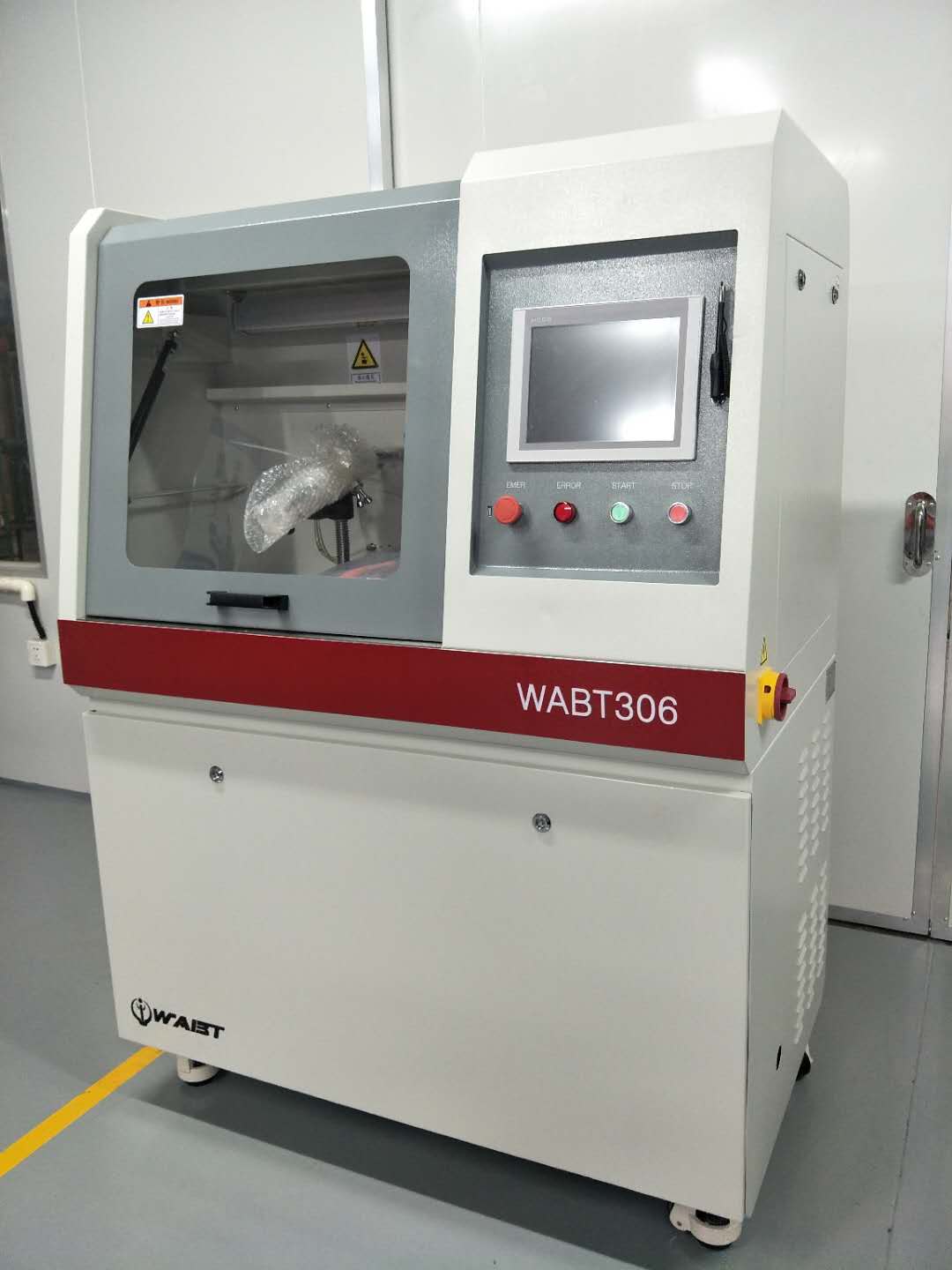

WABT306 is a precised high pressure common rail injector test bench specifically designed for
application in aftermarket field, covering almost all injectors, and standard with Piezo.

Specifications
1）Application：CR injector test for all brands.
2）Test content: Injector sealing, cleaning, injection & duel drain flow of full load, injection flow of emission, pre-injection, low idle.
3）KPI
Test period: 5min
   Test accuracy on injection flow of full load: ±0.5%
   Max. Rail pressure: 240Mpa
   Rail pressure regulation: ±1Mpa
4）Features
  Adopt global-leading gear-flowmeter.
Can test Bosch, Cummins, CAT, Denso, Delphi, Simens, and other domestic injectors, customizable
formula, and with Simens PLC controller.
