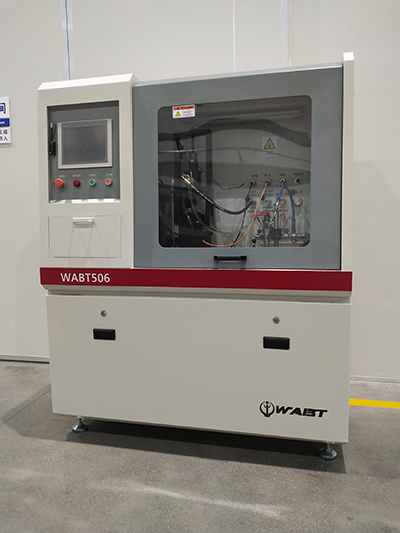

WABT506 is a precised test bench integrated with common rail fuel injector and pump nozzle, used for testing the common rail fuel injector and the pump nozzle, and the quick switching pump nozzle test function can be realized by changing the cam box when testing the pump nozzle.
WABT506 can accurately test the flow rate and response time of pump nozzles and injectors.
WABT506 has reached Cummins supplier standard on accuracy and stability of the equipment.

Specifications
1）Application：After-sales pump nozzle and fuel injector performance testing.
2）Test content: Test the flow rate and response time of each working condition point.
3）KPI
   Test period: 7~15min；
   Test accuracy on injection flow of full load: ±0.5%；
   Motor speed control precision: ±1RPM；
   Max. Rail pressure: 240Mpa；
   Rail pressure regulation: ±1Mpa；
   Volume: L*W*H=1400*780*174
 Weight: 800KG。
