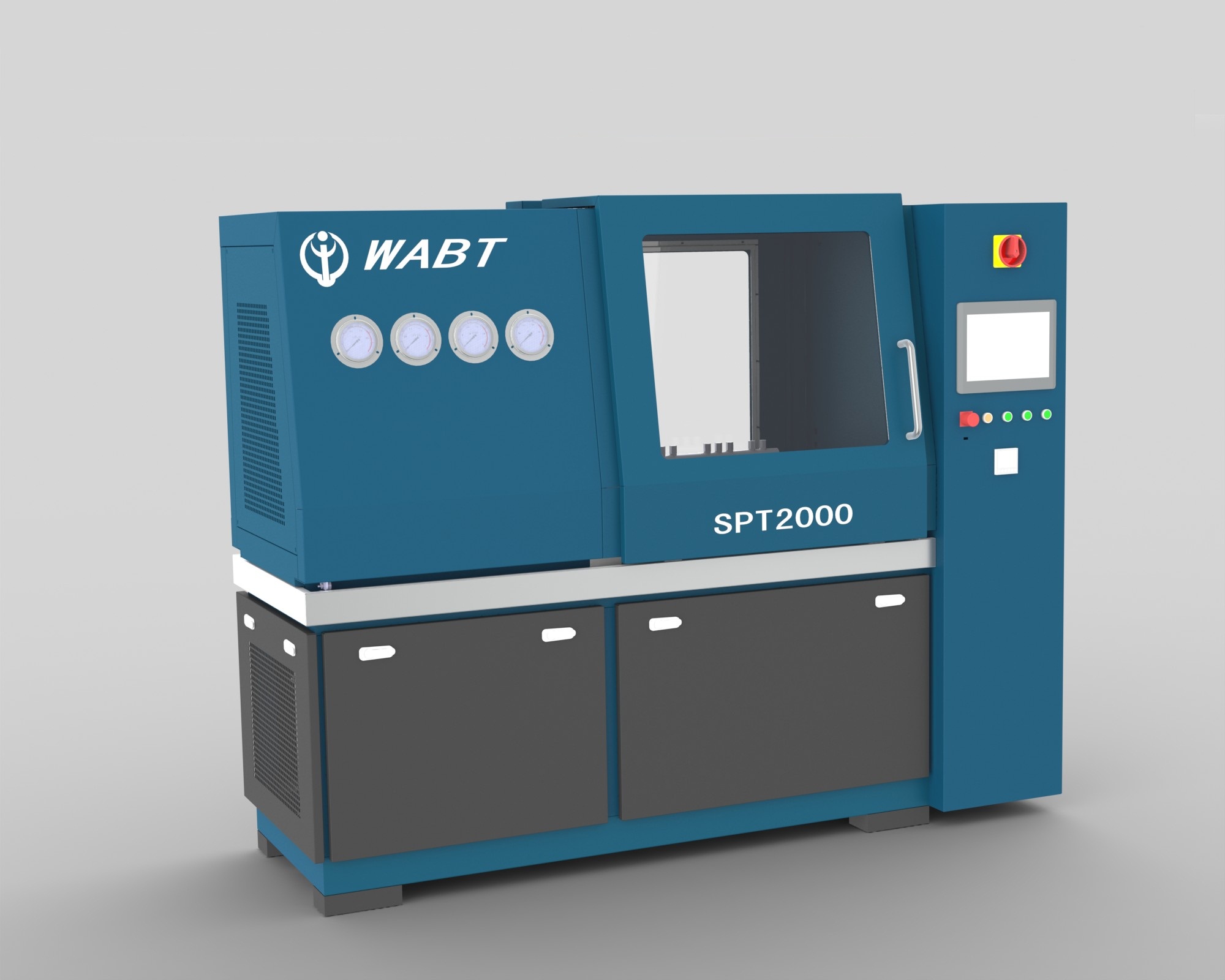

SPT2000 Common rail system integrated machine
1）purpose:
Aftermarket common rail pump and common rail injector inspection, repair and Remanufacturing
2）Production cycle:
Finished product: 1 months
Customized: 1~4 months
3）Model of common rail pump being measured:
Bosch CP1,CP2,CP3,CB18,CB28;
Denso HP0,HP3,HP4;
Delphi DFP1.1/1.2;
Carter 320D;
heavy oil CB2B916A.
4）Main performance:
Test performance of injector same as IFT205;
Accuracy of pump flow measurement:±1%;
Maximum rail pressure at pump test:180Mpa;
Pump test; rail pressure; control accuracy:±1Mpa;
Main motor power:15kw;
volume:Length*width*height=2200*780*1750;
weight:2000Kg.
5）Equipment features:
The injector and pump lines are completely separated to ensure cleanliness and test accuracy of the injector line system;
Pump test tank with cycle filtration, elimination of foam, iron filings adsorption, sedimentation and other functions;
The lubrication system ensures the pressure lubrication of the pump.
