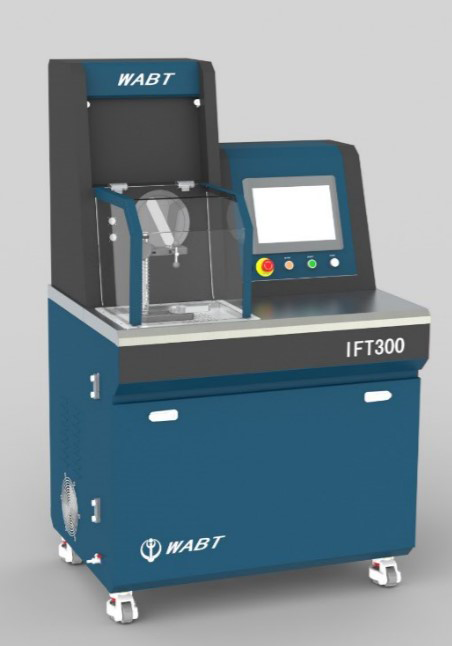

Product Introduction: Equipped with BOSCH CP3.3 pump and larger motor, IFT300 is a precise high-pressure common rail injector test bench specifically designed for application in aftermarket field, covering almost all injectors，like BOSCH, DENSO, DELPHI, CAT, CUMMINS......PIEZO is optional.

Specifications
1. Application: CR injector test for all brands
2. Test content: Injector sealing, cleaning, injection&fuel drain flow of full load, injection flow of emission, pre-injection, low idle

KPI:
Test period: 5min
Test accuracy on injection flow of full load: ±0.5%
Max. Rail pressure: 240Mpa
Rail pressure regulation: ±1Mpa
Volume: L*W*H=1000*800*1700mm
Weight: 300KG

Characteristics:
International imported flowmeter
Leading constant temp.&pressure system to ensure data precision
Cummins specified test specification
