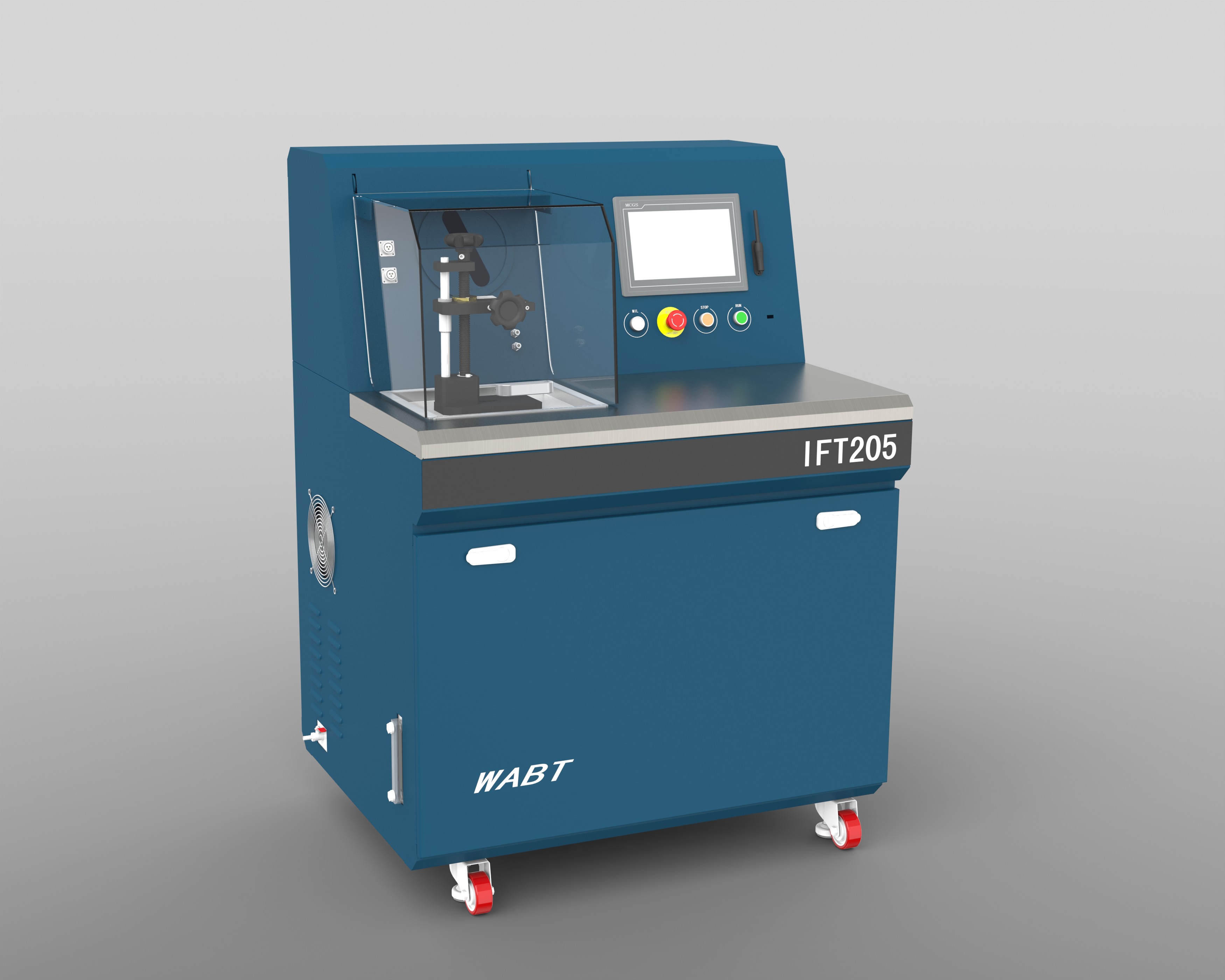

IFT205 Performance test bed of common rail injector
1）purpose:
Aftermarket common rail injector inspection, repair and Remanufacturing
2）Production cycle:
spot goods (special order takes 1~4 months)
3）Testing content:
Injector seal; injector cleaning;
Injection amount and oil return at full load condition;
The amount of injection at the discharge, pre injection and idle point.
4）Model of common rail injector tested:
Bosch 0445120XXX,0445110XXX;
BOSCH piezoelectric 115XXX,116XXX(Matching);
Denso 095000-XXXX;Delphi EJBR03301D；
Carter 320D;Cummins XPI;
heavy oil P091-000A,P091-000C.
5）Main index:
Test cycle:5min;
Test precision of full load injection quantity:±1%(20℃);
Number of fuel injectors at one time:1;
Maximum rail pressure:220Mpa;
Rail pressure regulation accuracy:±0.5Mpa;
volume:Length*width*height=950*780*1320.
6）Characteristic:
Use imported flowmeter;
Injection test BOSCH Cummins,Caterpillar,SIEMENS Delphi Denso,customizable formula;
The test function of the piezoelectric common rail injector is optional;
The controller is SIEMENS PLC;
HMI for high-end touch screen,support printers,remote upgrade,plus wireless card,you can achieve remote monitoring.
